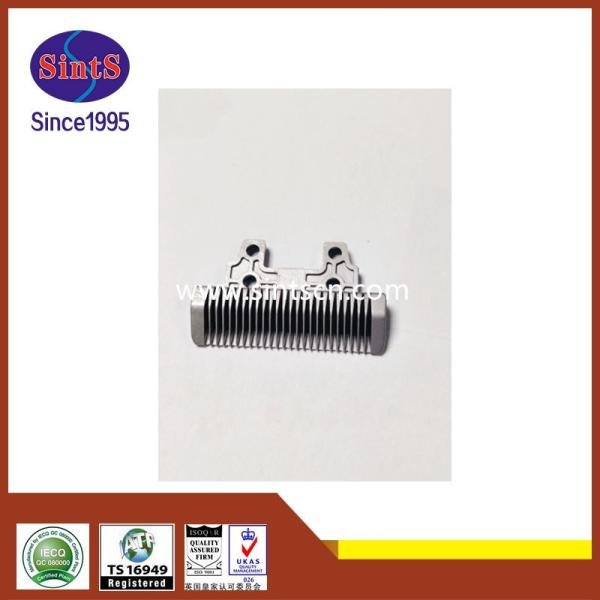

Standard Stainless Steel Hair Clipper Blades and Hair Scissors Blades
Components description
| process | metal injection molding,PIM process |
| applied software | pro-e, CAD, PDF |
| material | SS440/SS420 |
| surface finish | magnetic polishing |
| tolerance precision | ±0.05mm |
| quality system | ISO9001 and100% inspection before shipment |
| dimensions | as per customer's requests |
| samples qty | 5-10 pcs(for free) |
| certification | ISO 9001, TS 16949, IEQC080000 |
| packgae | carton oackage or as customer's requests |
| lead time | 28-32days after confirmed samples |
1, MIM is an advanced metal forming technology that use injection molding machine to manufacturing precision and complex metal parts, which combines the advantage of PM and plastic injection molding.
MIM Material List
| Materail Designation | Alloy Composition | Condition | YS(0.2%)(Mpa) | UTS(Mpa) | Elongation % | Hardness | Density g/cm3 | Remarks |
| HARDENED&TEMPERED STEEL |
MIM4605
(Fe2Ni) | Ni:1.5-2.5%
Mo: 0.75%max
C:0.3-0.6%
Fe Balance | Sintered | ≥400 | ≥600 | ≥5 | ≥150HV10 | ≥7.6 | |
| Heat Treated | 1425 | 1610 | 3 | 50-60HRC |
| MIM 4140 | Ni:0.75-1.25%
Cr:0.75-1.25
Mo: 0.75%max
C:0.3-0.6%
Fe Balance | Sintered | 625 | 825 | 9 | 70-110HRB | 7.6-7.8 | |
| Heat Treated | 820 | 1405 | 5 | 50-60HRC |
| STAINLESS STEEL |
| MIM SS 316L | C:0.08max
Ni:10-14%
Mo: 2-3%
Cr:16-18%
Fe Balance | Sintered | ≥180 | ≥510 | ≥50% | 120HV 10 | ≥7.6 | |
| MIM SS 316 | C:0.08max
Ni:4.5-7.0
Mo: 2.5-3.5
Cr:21-23
Fe Balance | Sintered | 447 | 732 | 24 | 70-100HRB | 7.6-7.8 | |
| MIM SS 304 | C:0.08max
Ni:8-10.5%
Cr:18-20%
Fe Balance | Sintered | 270 | 480 | 35 | 110-160Hv1 | 7.6-7.8 | |
| MIM SS 440C | C:0.9-1.2%
Cr:16-18%
Fe Balance | Sintered | | | | 30-40HRB | 7.6-7.8 | |
| Heat Treated | 1150 | 1310 | 6 | 50-60HRC |
| MIM SS420/SS410 | C:0.2-0.4%
Cr:12-14%
Fe Balance | Sintered | | | | 30-40HRB | 7.6-7.8 |
| Heat Treated | 1150 | 1310 | 6 | 40-50HRC |
| MIM 17-4ph | C:0.07max
Cr:15-18%
Cu:3.5-5%
Ni:3-5%
Nb: 0.15-0.5%
Fe Balance | Sintered | 720 | 950 | 6% | 20-30HRC | ≥7.6 |
| Heat Treated | ≥1950 | ≥1100 | ≥5% | 35-45HRC |
| MIM HK 30 | C:0.2-0.4%
Cr:23-27%
Ni: 19-22%
Fe Balance | Sintered | 463 | 782 | 18 | 160-250HV1 | 7.6-7.8 | |
| MAGNETIC MATERIALS |
| MIM Fe 3Si | C:0.08%
Si: 2.5-3.5%
Fe Balance | Sintered | 372 | 525 | 23 | 80HRB | 7.6-7.8 | |
2, MIM Technology Advantage/Features
it’s suit to do mass production with complicated shapes;
it can use all kind of metal material(such as stainless steel, iron, ceramic and titanium, etc)
its relative density can achieve more than 98%
its finished products is close to final products, reducing the post-treatment cost, and then save production cost
compared with tranditional CNC and precision casting process, the structure are more even and preformance is much better
compared with PM(Powder Metallurgy), MIM can produce more complex shape and better preformance metal products.
3, Company Advantage
1,Quality policy:
Zero defecets, doing things to be best in one time
Keeping improve and never stop pursuing perfect attitde
reducing cost, and contine improve the compition of products
2, Quality goal:
quality rate can achieve 98%
quality rate of half-finished products is 99%
the failure cost is <2%
3, Our all of products are suit ROHS standard, green parts, without any pollution.
4, Quality policy:
Zero defecets, doing things to be best in one time
Keeping improve and never stop pursuing perfect attitde
reducing cost, and contine improve the compition of products
2, Quality goal:
quality rate can achieve 98%
quality rate of half-finished products is 99%
the failure cost is <2%
3, Our all of products are suit ROHS standard, green parts, without any pollution.
4, Service:
1, 100% checking before shipment.
2, Satisfied packing, carton, pallet,or according to your requests.
3, Samples are within 30-45 days after the receipt of the deposit and the mold manufacture need 30-35 days. production will be finished about 25-30 days after samples confirmation.

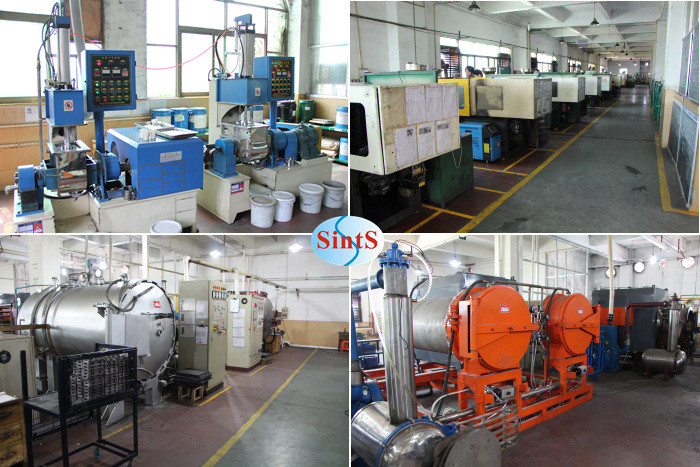

MIM Injection Equipment
If you are interested in it, please send me 2D or 3D drawings, so that we can offer to you.
